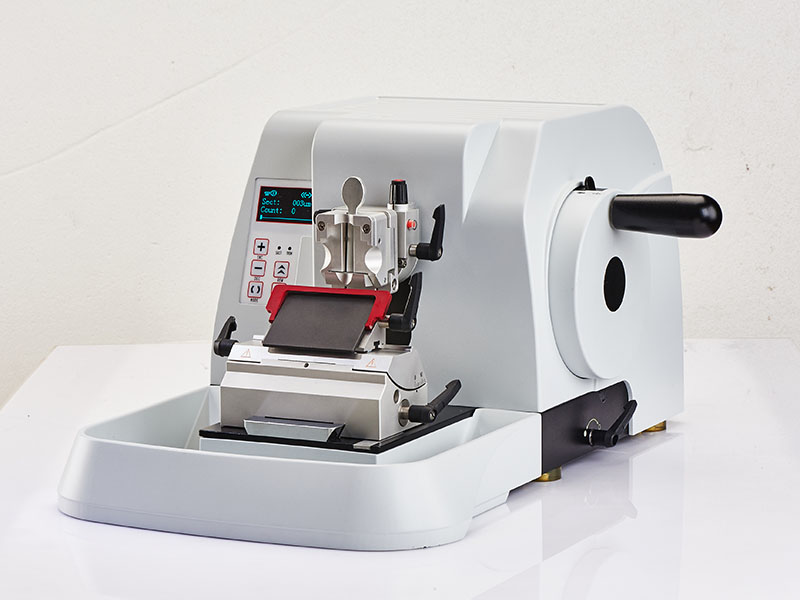

MICROTOME 601ST
MICROTOME 601ST
The 601-ST rotary microtome was designed for easy handing and high-precision sectioning frequently in hospitals
Product Description
The 601-ST rotary microtome was designed for easy handing and high-precision sectioning frequently in hospitals.
The 601-ST offers more favorable price, longer warranty period and lower price of spare parts
automatic refueling system to extend the service life of the microtome
adopts lead block counterweight, feel lighter and better
Variety of parameter Settings
At any position of the blade, the slicing performance is the same, and the stability of the microtome does not change.
| Technical data | 601-ST |
| Sectioning thickness range | from 0.5 to 100μm |
| Setting values | from 0.5 to 5μm in 0.5μm steps |
| from 5 to 20μm in 1μm steps | |
| from 20 to 50 in 5μm steps | |
| from 50 to 100μm in 10μm steps | |
| Horizontal specimen feed | 30mm |
| Vertical specimen feed | 70mm |
| Dimensions basic instrument | 485×566×285mm |
| Net weight | 31.5kgs |
Product Specifications
| Specification | 601ST | BRAND1 | BRAND2 | BRAND3 |
| Auxiliary method | Small Hand wheel and control panel | Small Hand wheel | Small Hand wheel and individual box | Knob |
| Counterweigh system |
lead weight, light and smooth |
spring counterweight, hard operation |
spring counterweight, hard operation |
spring counterweight, hard operation |
| Sectioning thickness range | 0.5 – 100 µm | 1 – 60 µm | 0.5 – 100 µm | 0.5 – 100 µm |
| Trimming section thickness range | 1 – 600 µm | 10µm .30 µm | 1 – 600 µm | 1 – 500 µm |
| Specimen retraction |
On/off 5μm-100μm, in 5μm increments |
40 µm off |
On/off 5μm-100μm | On/off |
| Electric coarse feed |
Electric, 2 kinds of speed | N |
Electric, 3kinds of speed |
Electric, 2 kinds of speed |
| Specimen orientation |
XY:±8° with zero scale |
XY:±8° with zero scale |
XY:±8° with zero scale |
XY:±8° Z: 360° without zero scale |
| Object feed | 30 mm | 24mm | 24 mm | 28 mm |
| Vertical specimen stroke | 70mm | 70mm | 70mm | 64mm |
| Automatic oiling system | Y | N | N | N |
